Solar Power Systems

CPSPV12000ETL-S

Phase Three Phase Output Rating ( kW/kVA ) 12 / 13.2 Output Voltage ( Vac ) 320 ~ 460 Input Voltage ( Vdc ) 160 ~ 1000 Maximum MPPT Current ( A ) 20 / 10

Dual Independent MPP Trackers
LCD Status Display
Compatible with Data Logger
IP65-rated Waterproof Enclosure

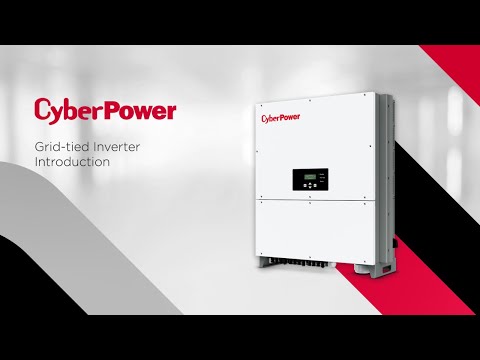

CyberPower CPSPV12000ETL-S generates renewable 3-phase electricity from solar energy, which is ideal for industrial applications. The product works with solar panel to harvest maximum solar energy, which can be sold to public grid, or used for electronic equipment. It can achieve 99.5% high tracking efficiency by adopting Maximum Power Point Tracking (MPPT) technology. The solar power information and data analysis can be conveniently conveyed through the LCD panel display. Suitable for outdoor use, the waterproof enclosure provides protection against water and dust. The product is able to work under a wide range of temperature, efficiently achieving heat dissipation and cooling the system. Users can remotely monitor and manage large-scale PV system by connecting to additional data loggers.

Features

  • Three-phase Design
  • High DC to AC Energy Efficiency
  • Dual Independent MPP Trackers
  • LED Status Indicator
  • IP65-rated Waterproof Enclosure
  • Work with Solar Panels
  • Maximum Power Point Tracking
  • LCD Status Display
  • Compatible with Data Logger
  • Wide Operating Temperature
