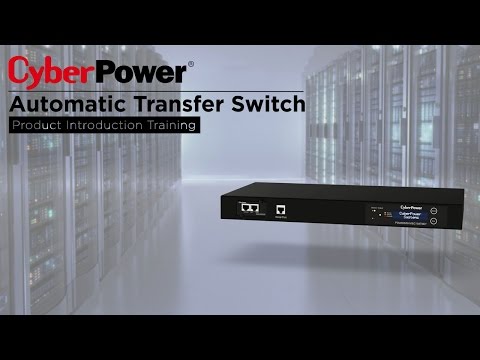

CyberPower PDU20SWHVCEE10ATNETprovides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.
The product includes a Remote Management Card. With the SNMP card and an IP address on the network interface, users have access to real-time monitoring of the ATS PDU. The power management web interface offers real-time remote monitoring of the ATS PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
Real-time Local/Remote Monitoring and Switching
Industrial-grade Metal Housing
Hot-swappable LCD Design
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Quick Transfer Time 8-12 ms (Typical)
Digital Real-time Load Display
LED Status Indicator
Adjustable Mounting Brackets
IEC Receptacle Locking
What's in the box
Product Registration Card
Cord Retention Tray
Product contents may vary according to different regions.For detailed information, please refer to user's manual/quick start guide.
AWARDS & CERTIFICATION
Dual Power Inputs
Nominal Input Voltage
200 ~ 240
50 / 60
Maximum Input Current
Input Connector Type
IEC 60309 16A x 2
Power Cord Length (ft.)
Power Cord Length (m.)
Power On/Off Switch
Depends on Input
Over Current Protection (Each Bank)
Outlets - # of Bank(s)
Outlet(s) - Total
Outlet(s) - Front
Outlet(s) - Rear
IEC C19 x 2
IEC C13 x 8
Remote Individual Outlet Control
Surge Protection & Filtering
Maximum Surge Voltage
Maximum Surge Current
Clamping Voltage (L-N, L-G, N-G)
Management & Communications
LCD Information Display
Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
